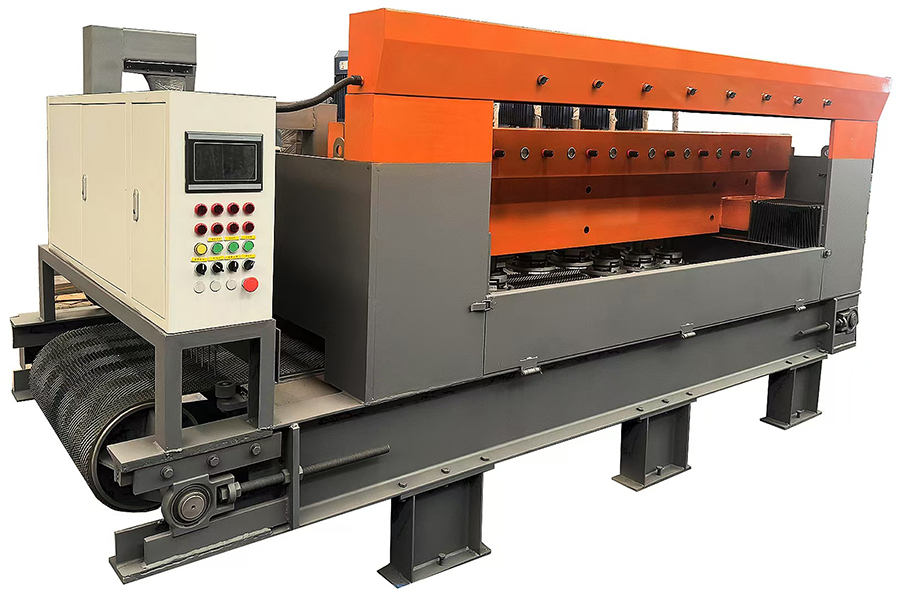

Polishing width 800mm
Polishing tiles or marble of different sizes:
no need to change machine parameters
Using diamond and resin grinding blocks:
Better effect and lower costs
The number of grinding heads and polishing width of the machine can be customized
YOUTUBE VIDEO Watch The Production Process of Terrazzo Tile Machines By YOUTUBE ▏ ▏ |

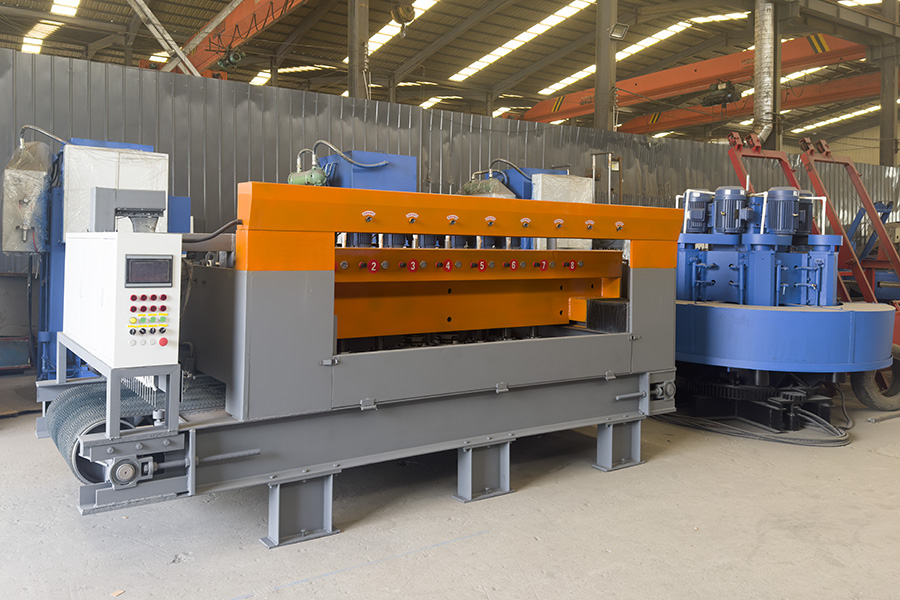

| Terrazzo Line

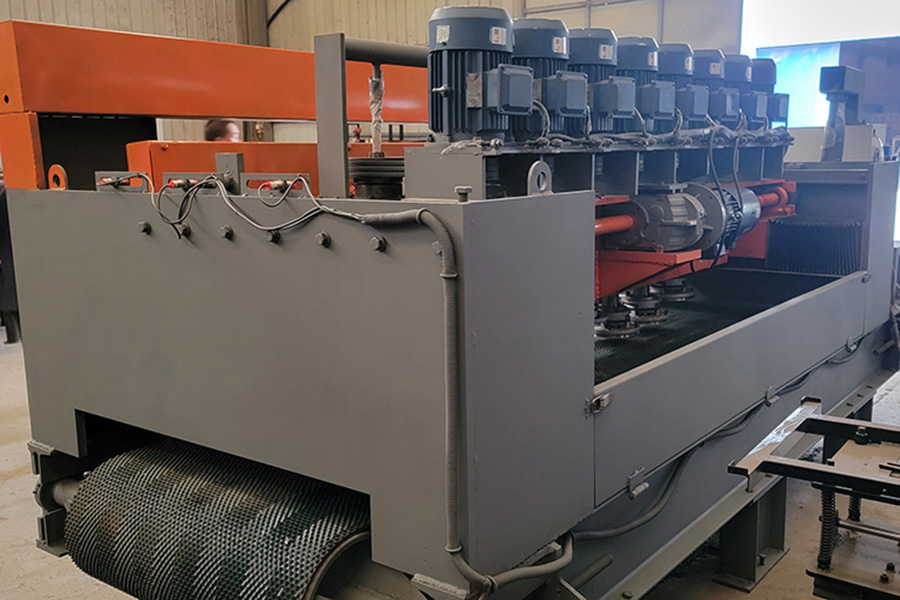

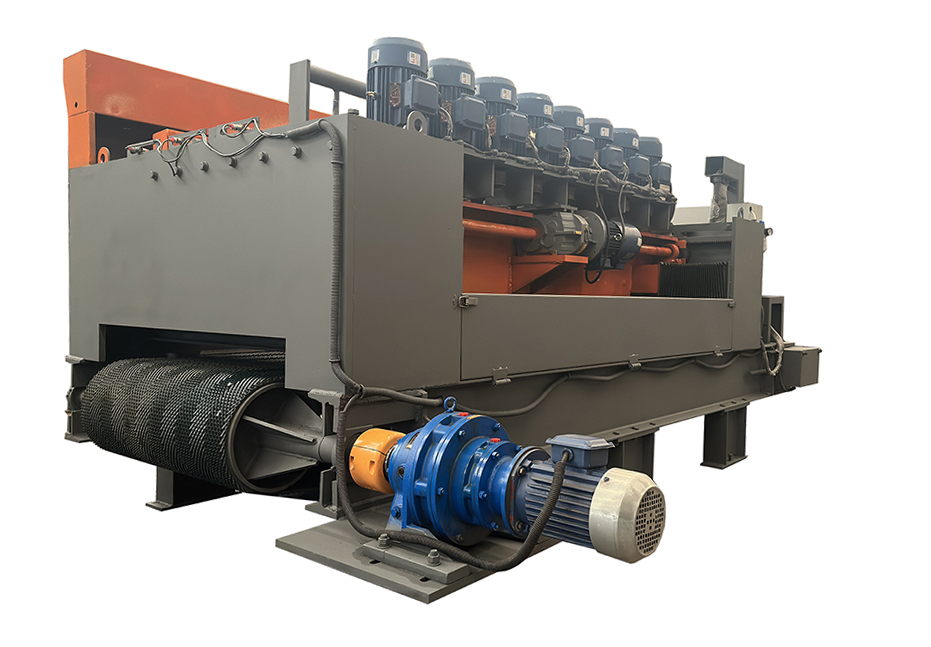

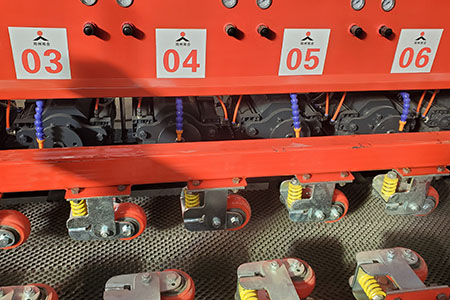

Polishing Machine Features Honing is carried out with an automatically compensated pneumatic system; The working pressure of the grinding wheels is driven and controlled by an electro-pneumatic system that enables to use properly the full power of the motors; The anti-abrasion conveyor belt is fed by means of an epicycloidal gearmotor which is driven by an electronic inverter, up of 3 meters per minute; Independent electric and pneumatic controls for every single head; All electric controls are carefully monitored to prevent improper operation; Independent water-collector, made in Stainless steel, to cool the grinding wheels of each |

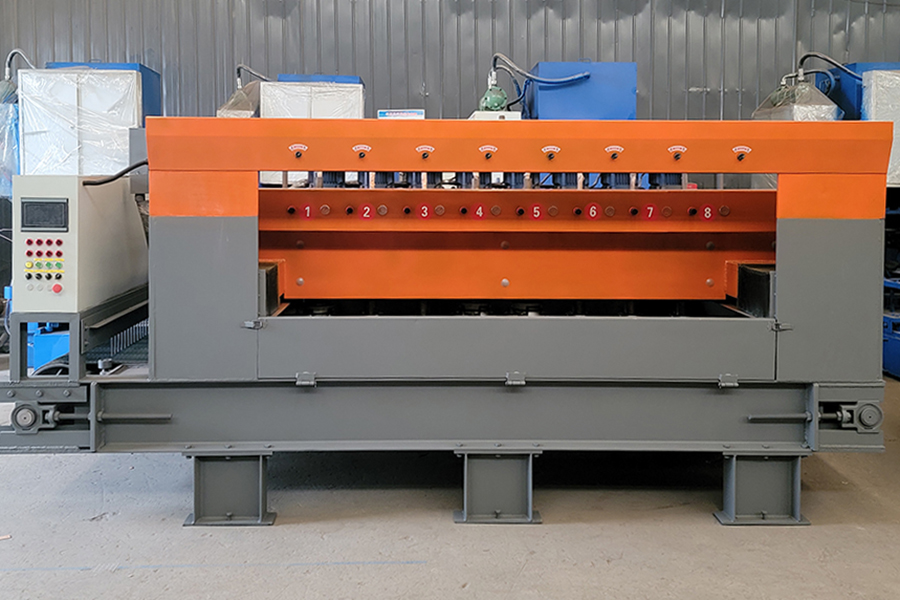

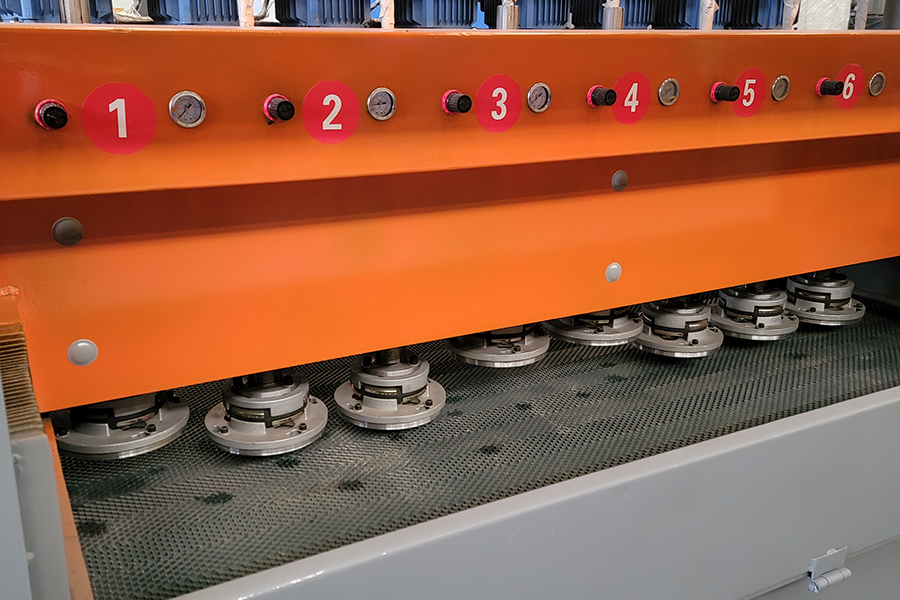

| Customized polishing head quantity |
|
|  | Fully Automated Fully automated and technologically advanced, these machines stand out for easy maintenance |

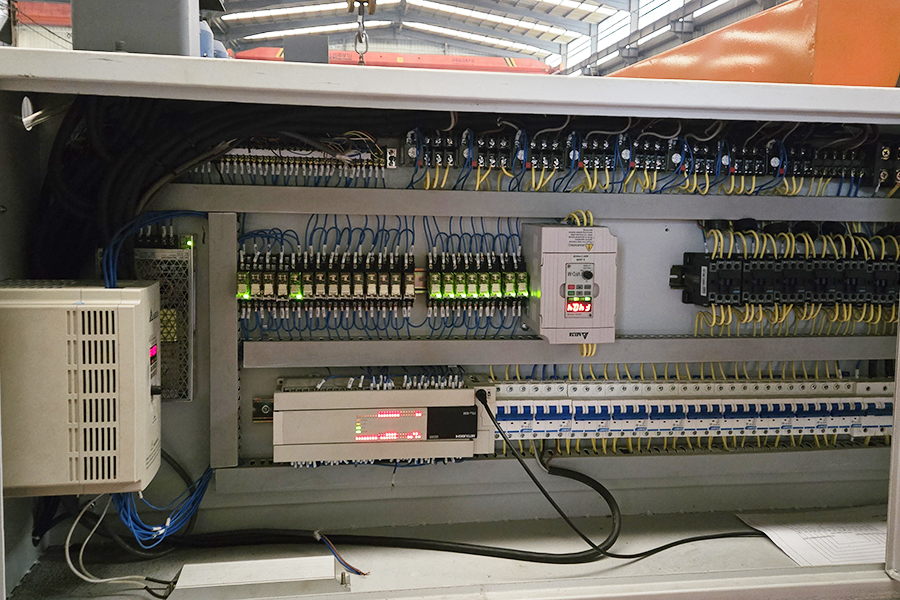

| PLC Control Cabinet The equipment operates automatically using PLC control, with all electrical components sourced from internationally renowned brands, ensuring stable and efficient operation of the equipment. |
|
| | Polish a wide range of sizes The size of grinding and polishing tiles from 250*250mm to 2000*800mm，No need to change any parameters |
Technical Data
| Polishing head quantity
| 6 | 8 | 12 | 16 |
| Polishing head power
| 4kw*6 | 4kw*8 | 4kw*12 | 4kw*16 |
| Transmission power
| 1.5kw | 1.5kw | 2.2kw | 2.2kw |
| Swing power
| 2.2kwkw | 2.2kw | 3kw | 3kw |
| Total power
| 27.7kw | 35.7kw | 51.7kw | 67.7kw |
| Maximum width
| 800mm | 800mm | 1000mm | 1000mm |
| Output or Production volume
| 560㎡ | 768㎡ | 926㎡ | 960㎡ |
| Weight
| 5060kg | 6200kg | 1170kg | 1850kg |
| Overall dimensions
| 5000*2400*2100mm | 6000*2400*2100mm | 8400*2650*2210mm | 10400*2650*2210mm |
| Special Note: The above pertains to standard models, and the quantity of polishing heads can also be customized.
| ||||
 |
Terrazzo Tiles Outdoor
|
|
Terrazzo Tiles Indoor |
|
Big Size Tiles |
|
Artistic Cement Tiles |
|
|
|
|
|
||||
| This type of terrazzo tile is primarily used for outdoor flooring and comes in smaller dimensions, such as: 250*250mm, 300*300mm, 400*400mm, and 300*600mm. |
This type of terrazzo tile is mainly used for indoor flooring, featuring a high surface sheen that resembles natural marble, and comes in medium dimensions, such as: 500*500mm, 600*600mm, and 300*600mm. |
This type of terrazzo tile is primarily designed for indoor flooring, bearing a close resemblance to natural marble, and is available in large dimensions, such as: 800*800mm, 1200*600mm, 1500*750mm, and 1800*900mm. |
This type of cement tile is primarily used for indoor flooring, featuring unique patterns, and comes in small dimensions, such as: 250*250mm, 300*300mm, and 400*400mm. |
