Terrazzo Press-600mm Max

One Important Thing:

Select the correct tile press. The size of the tiles is one important condition.

Small machines cannot produce large size terrazzo tiles.

Similarly, large terrazzo tile press is not suitable for producing small size terrazzo tiles

SH360 It can produce 500mm terrazzo tiles (length & width)

SH400 It can produce 600mm terrazzo tiles (length & width)

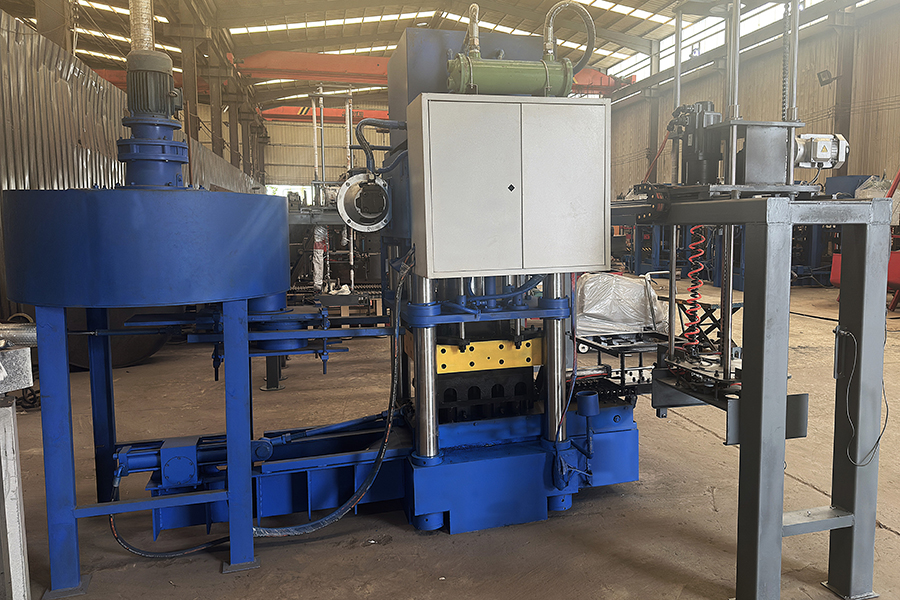

The machine shown in the picture only produces single-layer bricks. If you need to produce double-layer terrazzo tiles, please contact us

INTRODUCE

YOUTUBE VIDEO

Watch The Production Process of Terrazzo Tile Machines By YOUTUBE

▏

Terrazzo Tile Making Machine Features

Special designed for auto operation,low investment, high efficiency

Hydraulic pressure guarantees the high density of the terrazzo tile

The tile machine easy operation,low maintenance rate

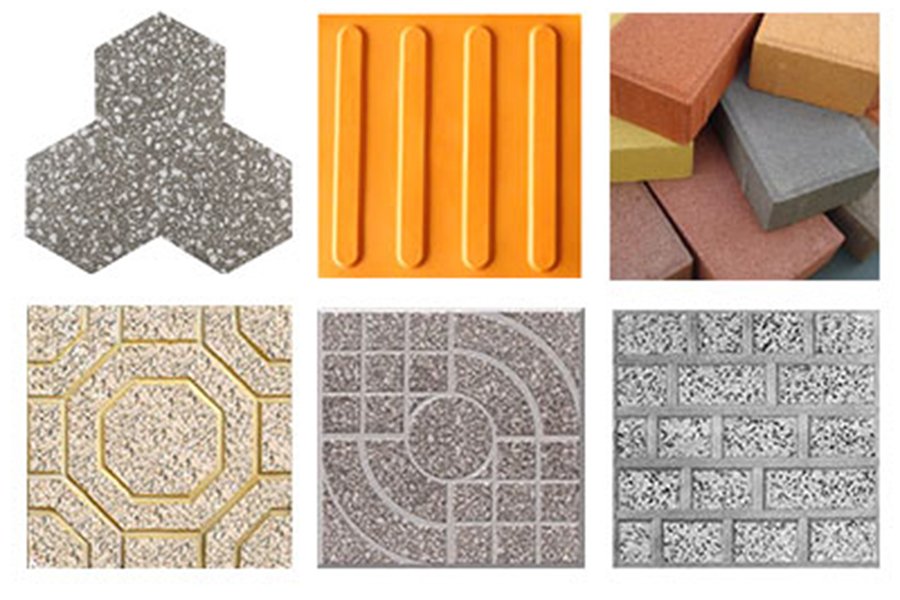

Terrazzo tile machine can produce floor tile,pave brick,paving tile,garden tile, with customized pattern.

The machine can install with Pan mixers

Only three or four workers can run the terrazzo tile molding machine

Raw Materials to Produce Terrazzo Tile

Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.

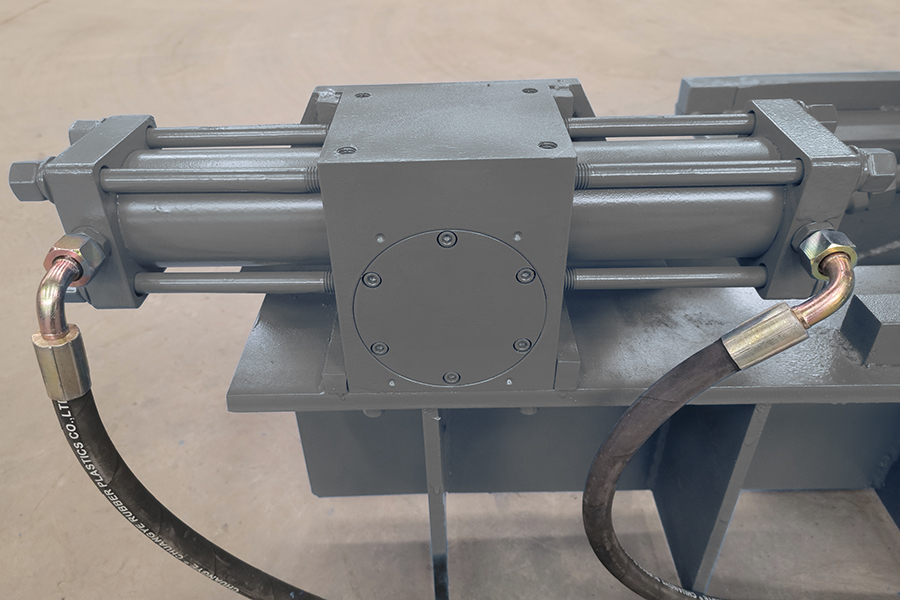

Excellent Oscillating Component

During the operation of the brick press, the mold base carrying the raw material needs to perform a linear cyclic motion. Utilizing a high-quality and reliable oscillating cylinder can help the brick press maintain stable and continuous operation, demonstrating outstanding performance in its work.

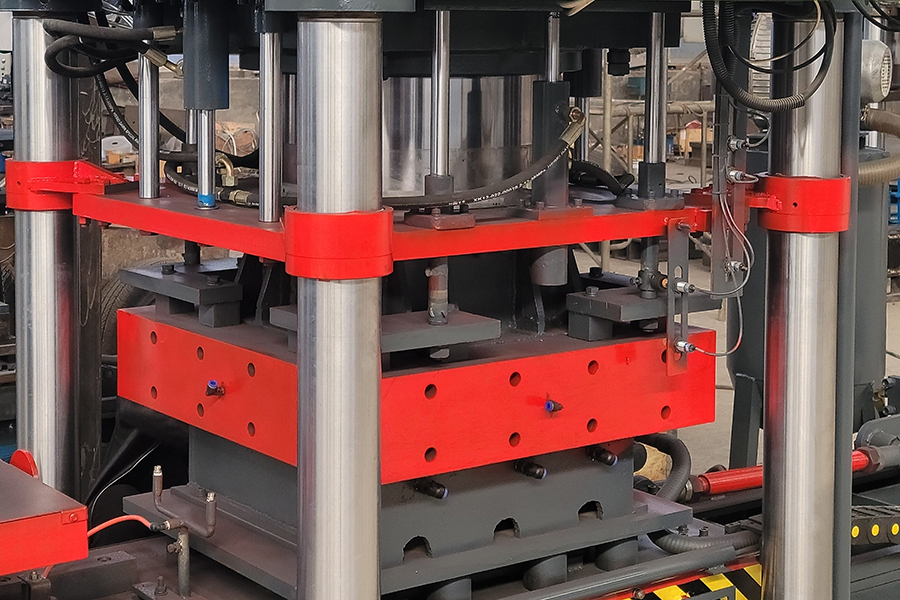

Enhanced Guide Device

Enhanced Guide Device

Additional guide devices have been installed on the brick press to ensure that the movement trajectory remains in the correct position during the up and down operation. This design reduces mold wear and extends its service life.

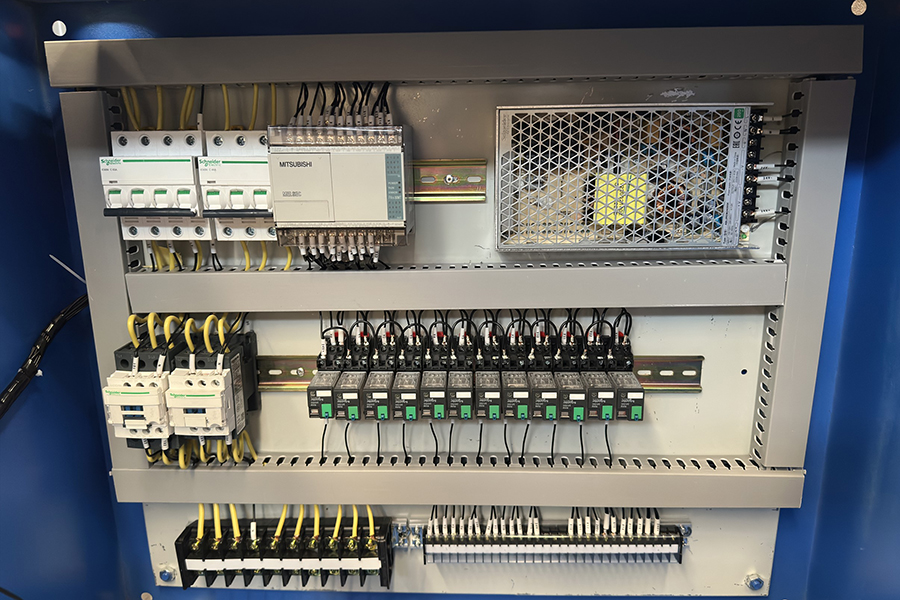

PLC Control Cabinet

PLC Control Cabinet

The equipment operates automatically using PLC control, with all electrical components sourced from internationally renowned brands, ensuring stable and efficient operation of the equipment.

Optimize the Hydraulic System

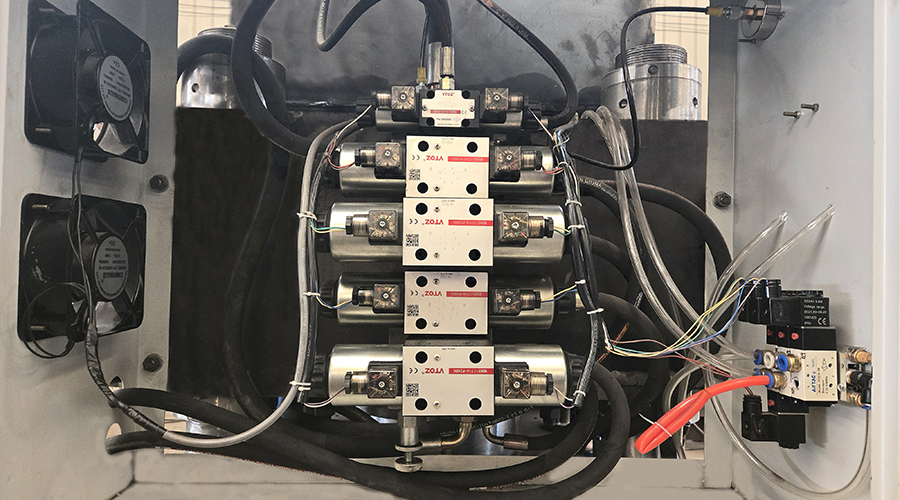

The hydraulic system utilizes both high-pressure and low-pressure systems, with an automatic switching mechanism between the two. To enhance the heat dissipation of the solenoid valves, a dedicated cooling fan has been specifically installed.

▕

CLICK ↓ Request For Quote

Email:shuanghemachine@gmail.com

Whatsapp:8613683715072

TERRAZZO TILE PRESS

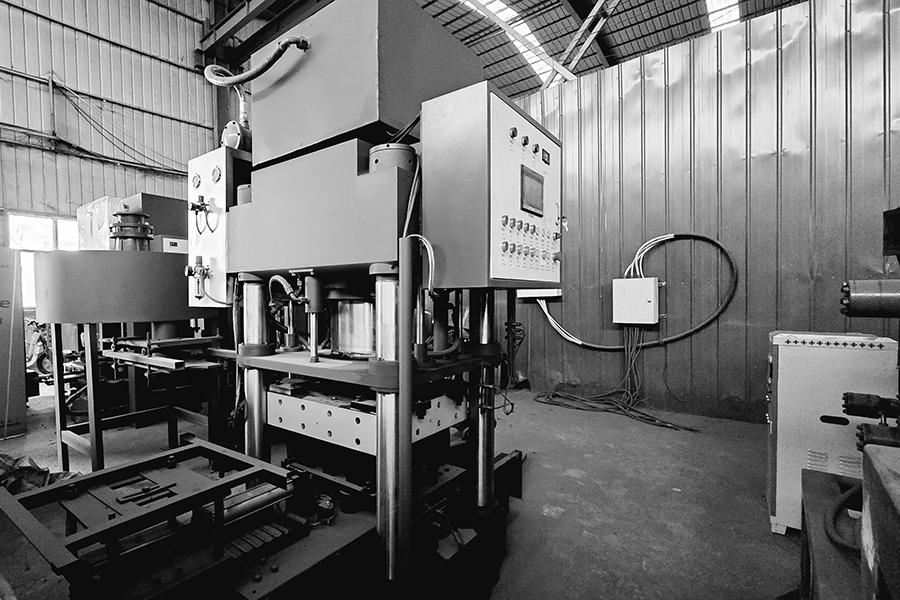

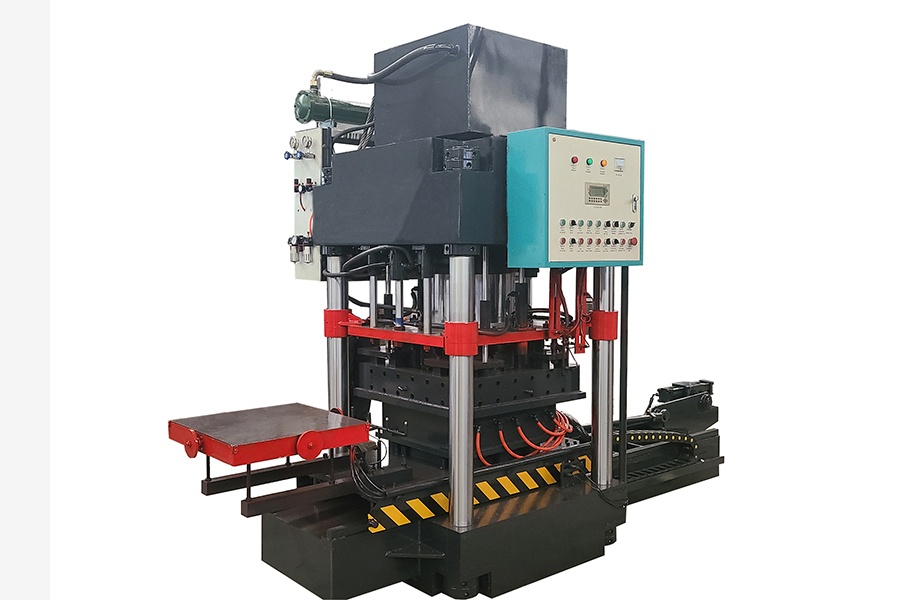

SH360 TERRAZZO TILE PRESS

SH360. The total power of the tile press during operation is 22.8kw.

This power includes the mixer, feeder, air compressor and terrazzo press.

It is very energy-saving. It can produce 3000 pieces of 500*500mm terrazzo tiles in 8 hours. Importantly,

It can be produced by 2-3 people.

The efficiency is very high.

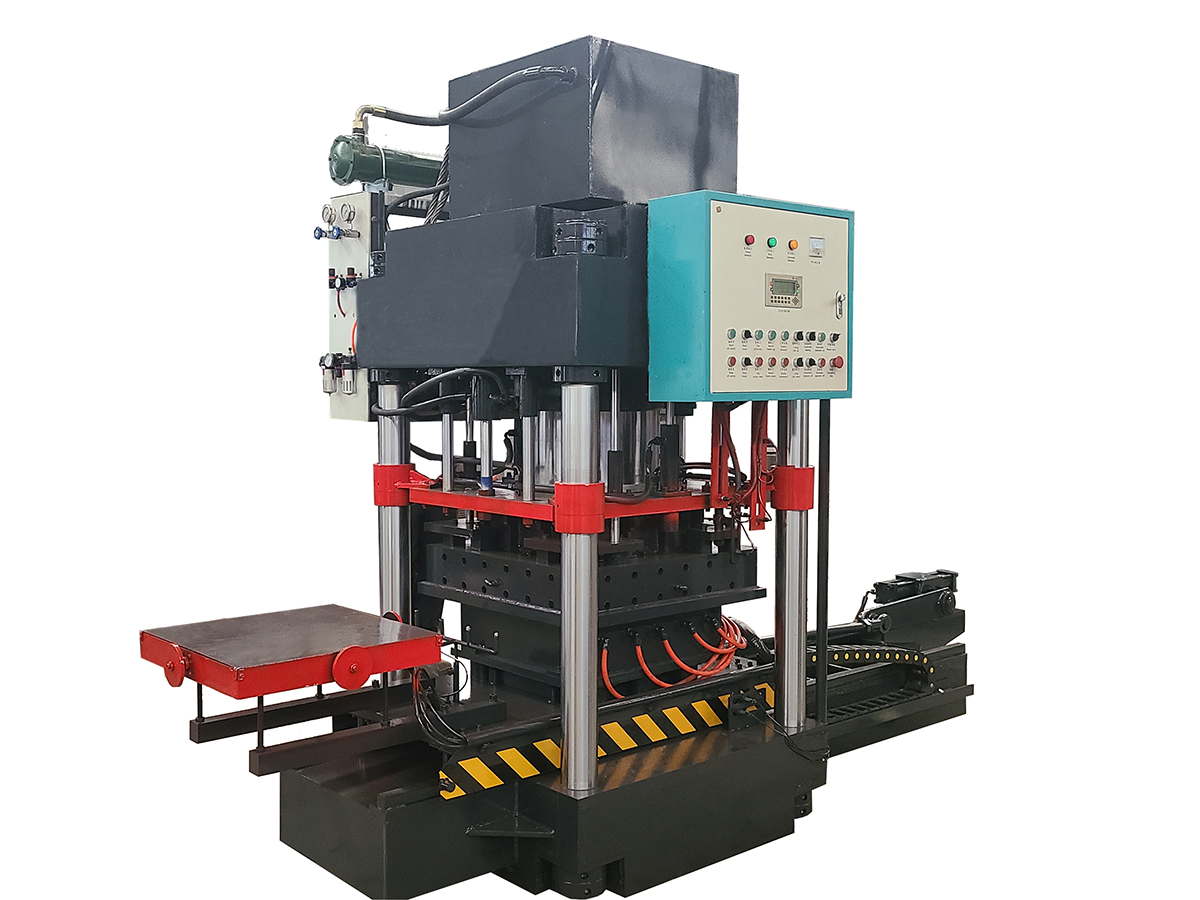

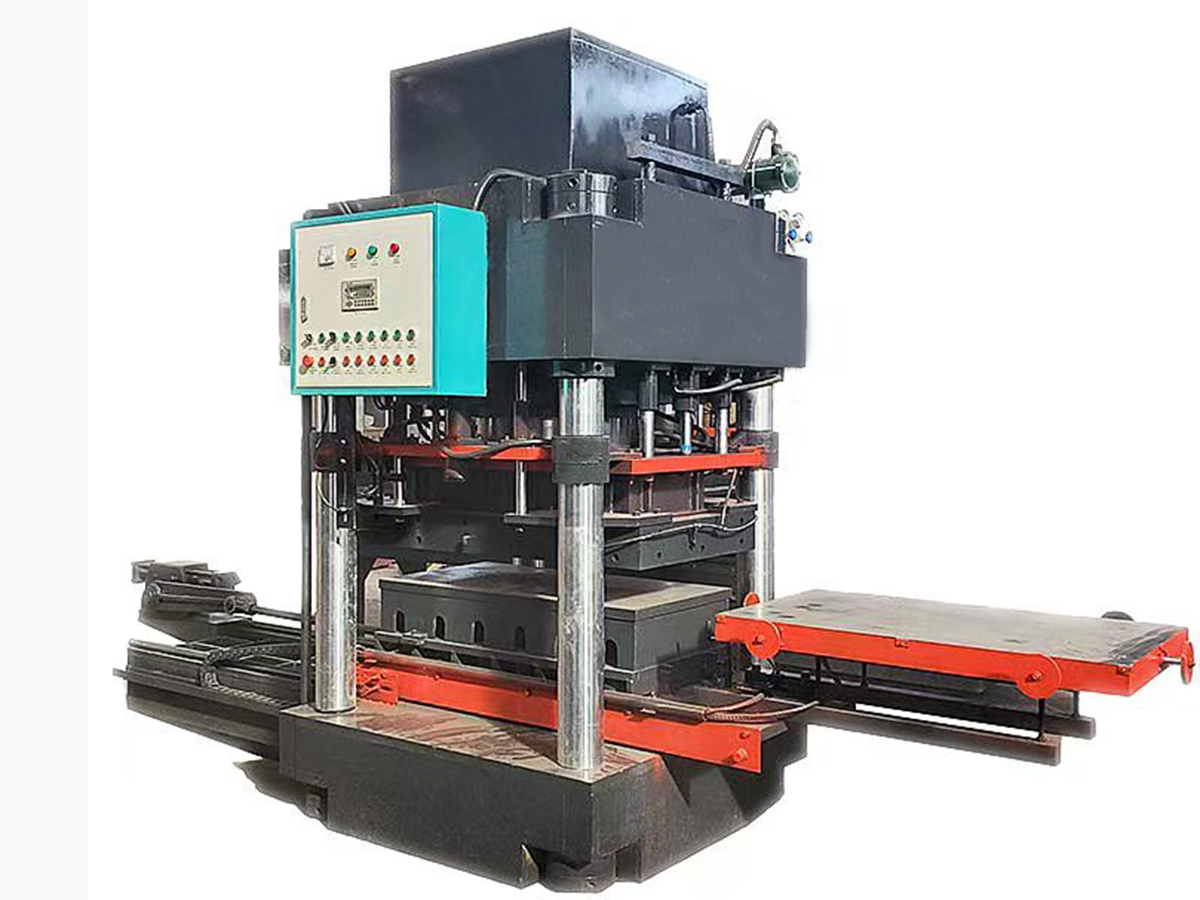

SH400 TERRAZZO TILE PRESS

SH400. the total power of the tile press during operation is 26.3kw.

This power includes the mixer, feeder, air compressor and terrazzo press. It is very energy-saving.

It can produce 2500 pieces of 600*600mm terrazzo tiles in 8 hours.

It can be produced by 3 people.

Technical Data

MODEL	SH360	SH400
Molding Pressure	315T	389T
Powder	7.5KW	11KW
Capacity	5-6 pi/min	4-5P/min
Max. Product Size	500x500mm	600*600mm
Weight	5100kg	6000kg
Rated Hydraulic Pressure	16Mpa	16Mpa
Cylinder Diameter	360mm	400mm
Overall Dimension	2780x2050x2500mm	298021502550mm

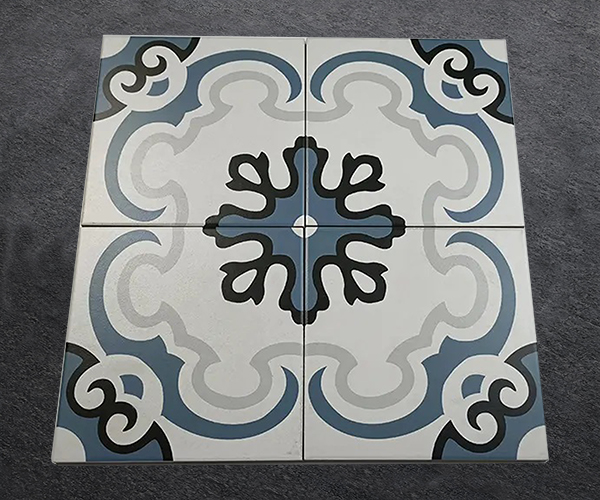

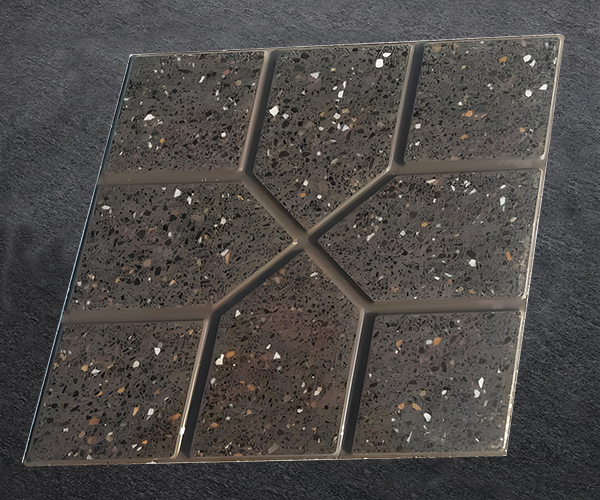

Terrazzo Tiles Outdoor	Terrazzo Tiles Indoor	Big Size Tiles	Artistic Cement Tiles

This type of terrazzo tile is primarily used for outdoor flooring and comes in smaller dimensions, such as: 250250mm, 300300mm, 400400mm, and 300600mm.	This type of terrazzo tile is mainly used for indoor flooring, featuring a high surface sheen that resembles natural marble, and comes in medium dimensions, such as: 500500mm, 600600mm, and 300*600mm.	This type of terrazzo tile is primarily designed for indoor flooring, bearing a close resemblance to natural marble, and is available in large dimensions, such as: 800800mm, 1200600mm, 1500750mm, and 1800900mm.	This type of cement tile is primarily used for indoor flooring, featuring unique patterns, and comes in small dimensions, such as: 250250mm, 300300mm, and 400*400mm.

Terrazzo Press-600mm Max

Technical Data

Explore all SHM solutions

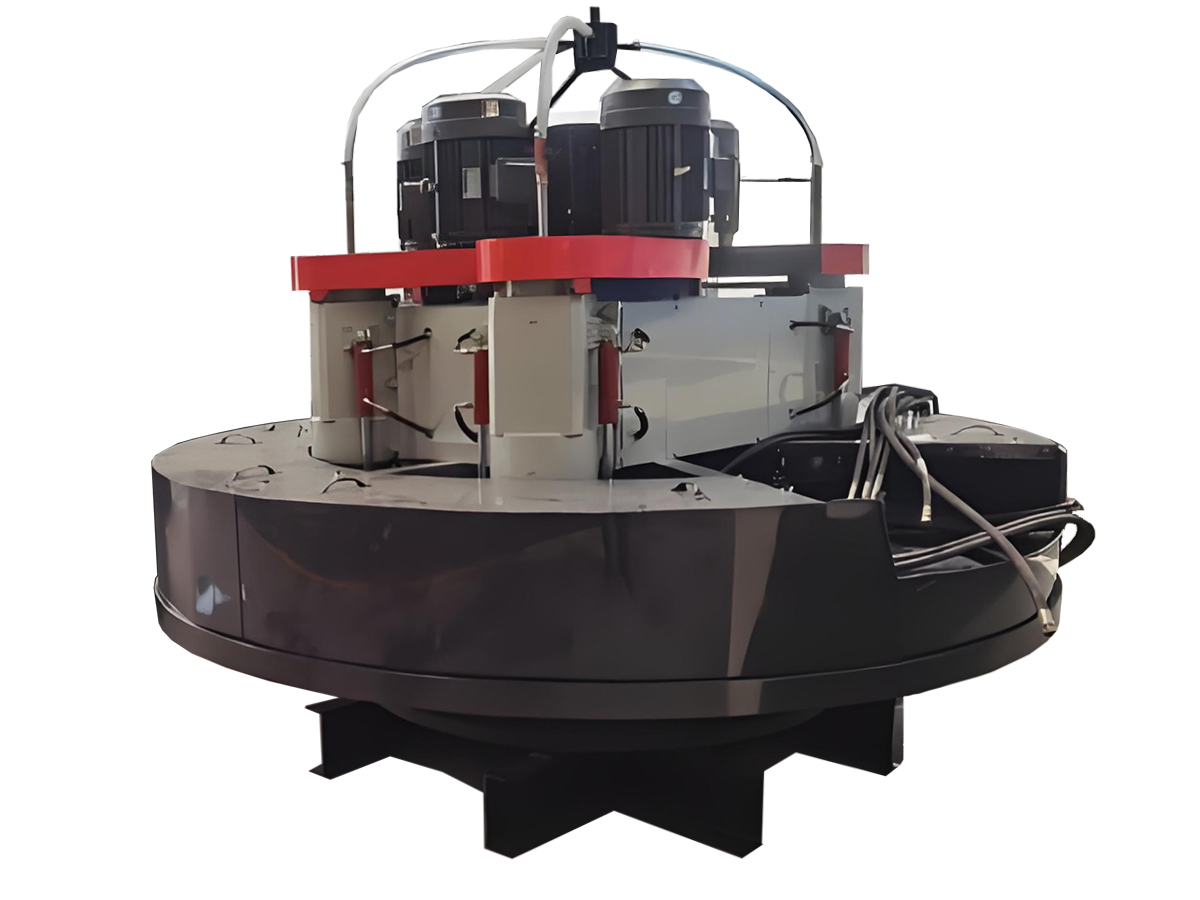

Rotary Polishing Machine

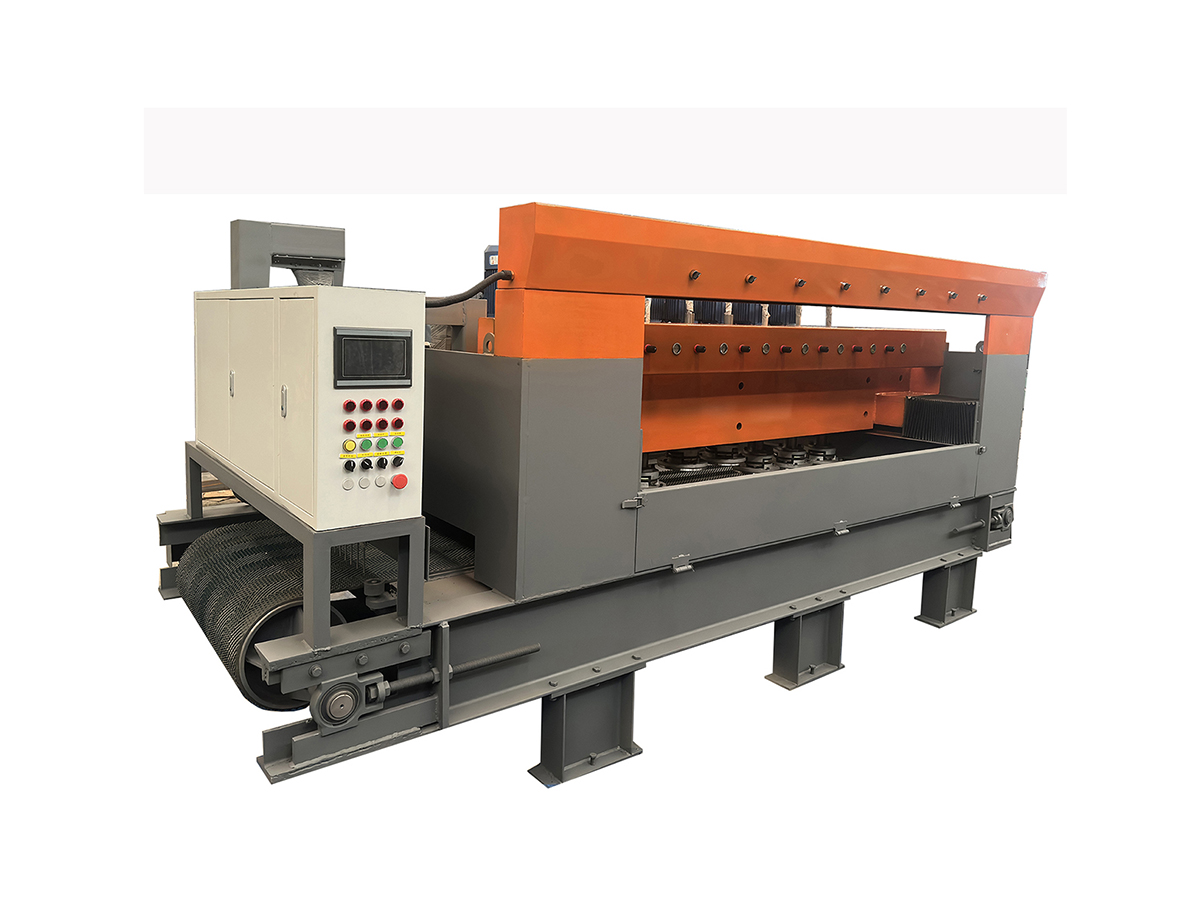

Line Polishing Machine-800
