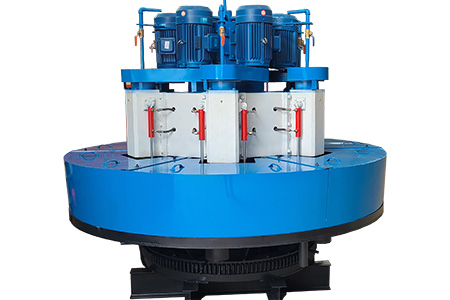

Rotary Polishing Machine
Five polishing heads work simultaneously. High efficiency,.
Good polishing effect, suitable for polishing outdoor terrazzo floor tiles.
But there are strict requirements for the size of tiles
Five polishing heads work simultaneously. High efficiency,.
Good polishing effect, suitable for polishing outdoor terrazzo floor tiles.
But there are strict requirements for the size of tiles
YOUTUBE VIDEO Watch The Production Process of Terrazzo Tile Machines By YOUTUBE ▏ ▏ |
| Terrazzo Polishing Machine Features This series terrazzo tile polishing machine is specially designed for grinding and polishing terrazzo tiles with very competitive prices. The coarsely grinding, medium grinding and fine grinding can be finished in one set of this machine. |

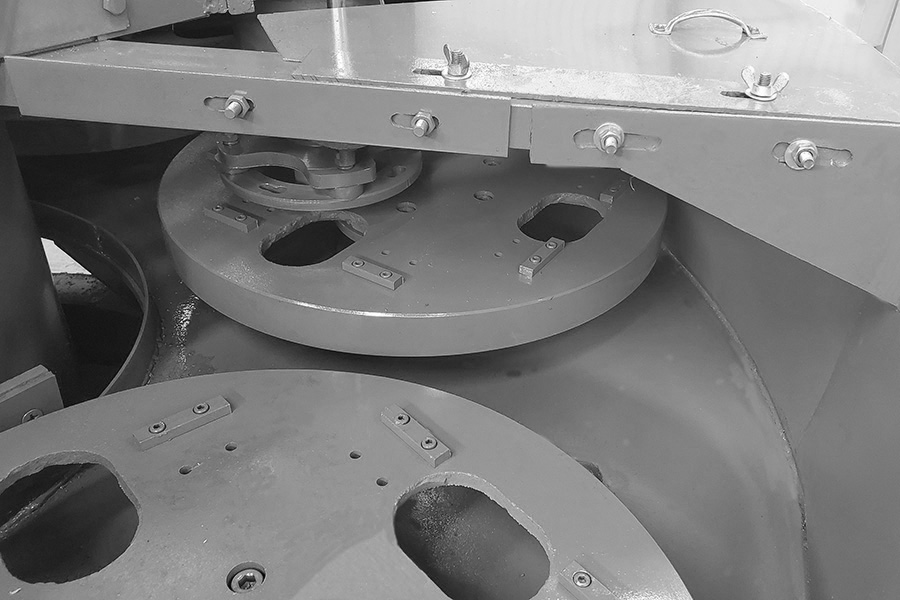

| Five polishing heads |
|

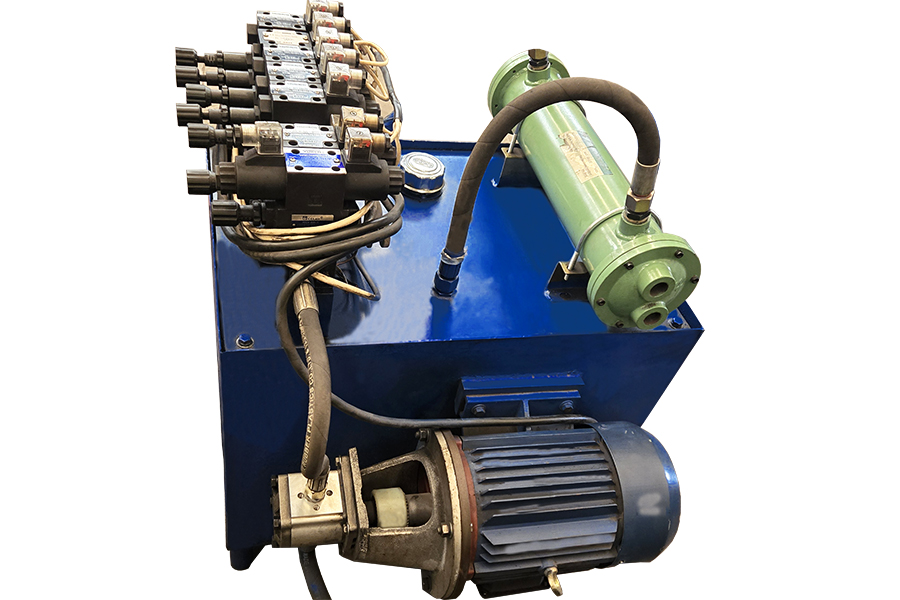

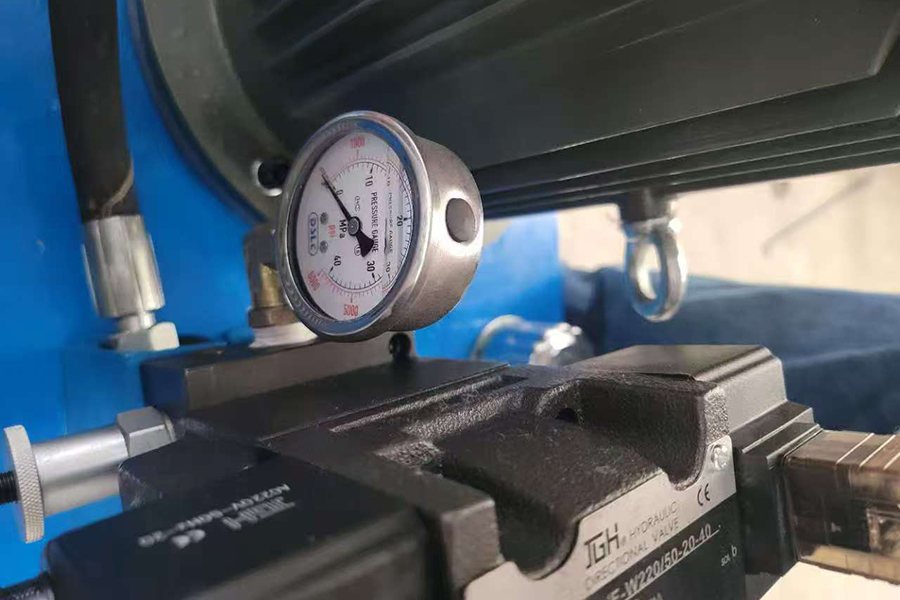

|  | Powered by hydraulic drive. During the operation of the polishing machine, the rotation of the turntable is driven by hydraulics, and the vertical movement of the five grinding heads is actuated by hydraulic cylinders, facilitating the station transfer and polishing of terrazzo tiles. |

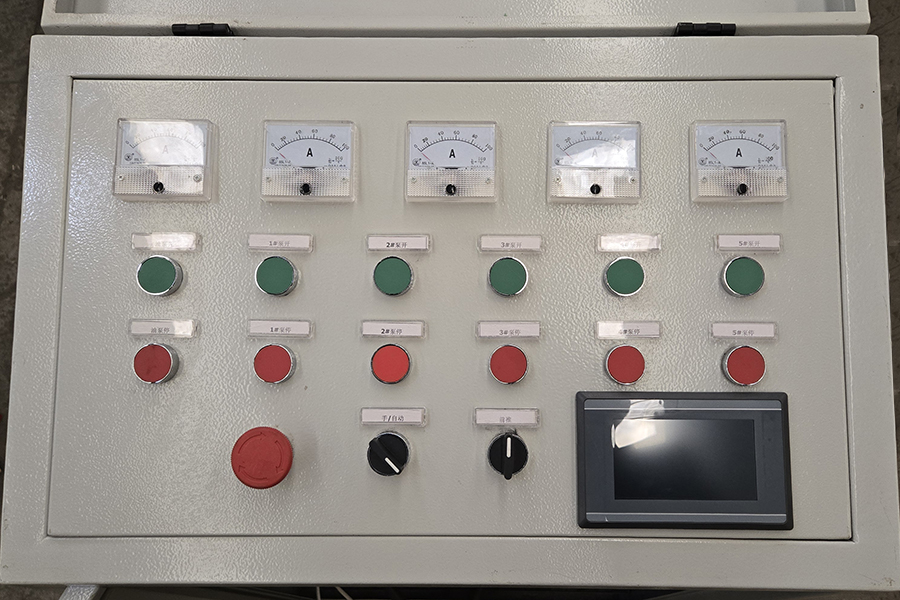

| | PLC Control Cabinet The equipment operates automatically using PLC control, with all electrical components sourced from internationally renowned brands, ensuring stable and efficient operation of the equipment. |
| The operation and Maintenance is simple Its operation is very simple, allowing workers to operate the machine without the need for specialized training, and simple maintenance is sufficient to keep the machine running smoothly. |
|
| | Terrazzo Tile Finished Product Display After polishing, the surface brightness of the terrazzo tiles can reach 65-70 degrees, and they become waterproof, slip-resistant, and wear-resistant. |
▕ ▕ | CLICK ↓ Request For Quote |
| Email:shuanghemachine@gmail.com Whatsapp:8613683715072 |
Model | Processing sizes of the tiles(mm) | Power | Quantity of heads | Weight | Dimension(mm) |
RP3040 | 300*300/400*400/250*250 | 25.5KW | 5 | 2800KG | 2100*2100*1750 |
RP4050 | 400*400/500*500/300*600 | 33KW | 5 | 3500KG | 2200*2200*1750 |
RP5060 | 500*500/600*600/400*600/300*600 | 33KW | 5 | 4500KG | 2500*2500*1750 |
 |
Terrazzo Tiles Outdoor
|
|
Terrazzo Tiles Indoor |
|
Big Size Tiles |
|
Artistic Cement Tiles |
|
|
|
|
|
||||

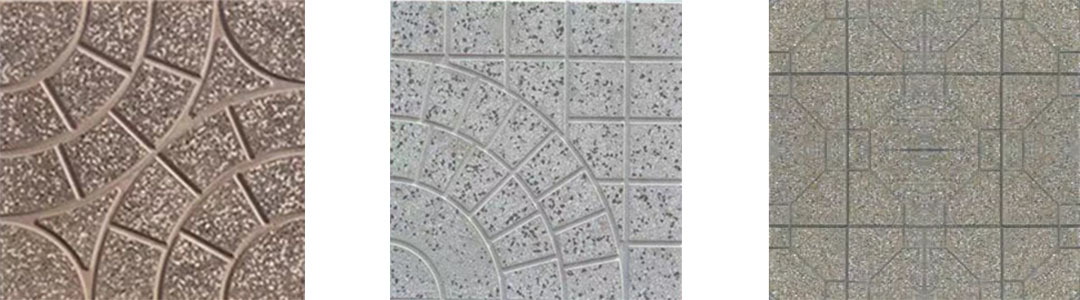

| This type of terrazzo tile is primarily used for outdoor flooring and comes in smaller dimensions, such as: 250*250mm, 300*300mm, 400*400mm, and 300*600mm. |
This type of terrazzo tile is mainly used for indoor flooring, featuring a high surface sheen that resembles natural marble, and comes in medium dimensions, such as: 500*500mm, 600*600mm, and 300*600mm. |
This type of terrazzo tile is primarily designed for indoor flooring, bearing a close resemblance to natural marble, and is available in large dimensions, such as: 800*800mm, 1200*600mm, 1500*750mm, and 1800*900mm. |
This type of cement tile is primarily used for indoor flooring, featuring unique patterns, and comes in small dimensions, such as: 250*250mm, 300*300mm, and 400*400mm. |
