Terrazzo Press-Big Size
With nearly 20 years of production experience
we can design and provide a complete set of solutions according to your requirements.
With nearly 20 years of production experience
we can design and provide a complete set of solutions according to your requirements.
YOUTUBE VIDEO Watch The Production Process of Terrazzo Tile Machines By YOUTUBE ▏ ▏ |
Terrazzo Tile Making Machine Features
High degree of automation, high production efficiency, suitable for large-scale operations, significantly improving efficiency
Uniform pressure ensures consistent density and strength of bricks, and stable product quality
We can produce terrazzo tiles in various specifications and shapes to meet different market demands
Equipped with multiple safety protection devices to ensure operational safety
Raw Materials to Produce Terrazzo Tile
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.
| Can produce various large-sized terrazzo tiles |
|
|  | Enhanced Guide Device Enhanced Guide Device Additional guide devices have been installed on the brick press to ensure that the movement trajectory remains in the correct position during the up and down operation. This design reduces mold wear and extends its service life. |
| PLC Control Cabinet PLC Control Cabinet The equipment operates automatically using PLC control, with all electrical components sourced from internationally renowned brands, ensuring stable and efficient operation of the equipment. |
|
| | Optimize the Hydraulic System The hydraulic system utilizes both high-pressure and low-pressure systems, with an automatic switching mechanism between the two. To enhance the heat dissipation of the solenoid valves, a dedicated cooling fan has been specifically installed. |
▕ ▕ | CLICK ↓ Request For Quote |
| Email:shuanghemachine@gmail.com Whatsapp:8613683715072 |

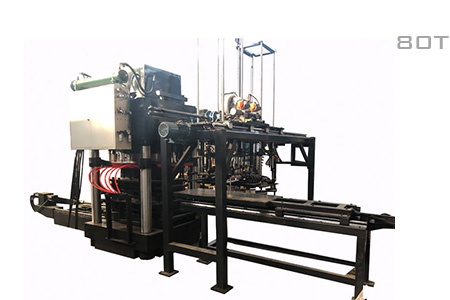

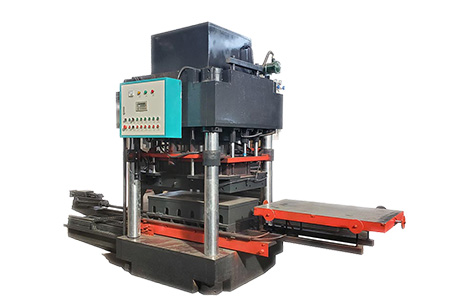

TERRAZZO TILE PRESS
| | SH550 TERRAZZO TILE PRESS SH550. The total power of the tile press during operation is 29.2kw. This power includes the mixer, feeder, air compressor and terrazzo press. It is very energy-saving. It can produce 2000 pieces of terrazzo tiles in 8 hours. The sizes it can produce are: 600 * 600mm, 400 * 800mm, 600 * 900mm, etc and be produced by 3 people. |
| | SH650 TERRAZZO TILE PRESS SH650. the total power of the tile press during operation is 33.7kw. It can produce 1500 pieces of terrazzo tiles in 8 hours. The sizes it can produce are: 600 * 900mm, 800 * 800mm, 1200 * 600mm, 1200 * 800mm,etc.produced by 3-4 people. |
MODEL | SH550 | SH650 | SH800 |
| Design Pressure | 600T | 900T | 1250T |
| Powder | 11KW | 15KW | 18kW |
| Capacity | 4-5 pi/min | 3-4P/min | 2p/min |
| Max. Product Size | Length ≤ 950 mm Width ≤ 650 mm | Length ≤ 1260 mm Width ≤ 850 mm | Length ≤ 1860 mm Width ≤ 950 mm |
| Weight | 11500kg | 15500kg | 20000kg |
| Hydraulic Pressure | 25Mpa | 25Mpa | 25mpa |
| Cylinder Diameter | 550mm | 650mm | 800mm |
| Overall Dimension | 3850x2050x2550mm | 4300*2150*2600mm | 4600*2200*2600 |
 |
Terrazzo Tiles Outdoor
|
|
Terrazzo Tiles Indoor |
|
Big Size Tiles |
|
Artistic Cement Tiles |
|
|
|
|
|
||||
| This type of terrazzo tile is primarily used for outdoor flooring and comes in smaller dimensions, such as: 250*250mm, 300*300mm, 400*400mm, and 300*600mm. |
This type of terrazzo tile is mainly used for indoor flooring, featuring a high surface sheen that resembles natural marble, and comes in medium dimensions, such as: 500*500mm, 600*600mm, and 300*600mm. |

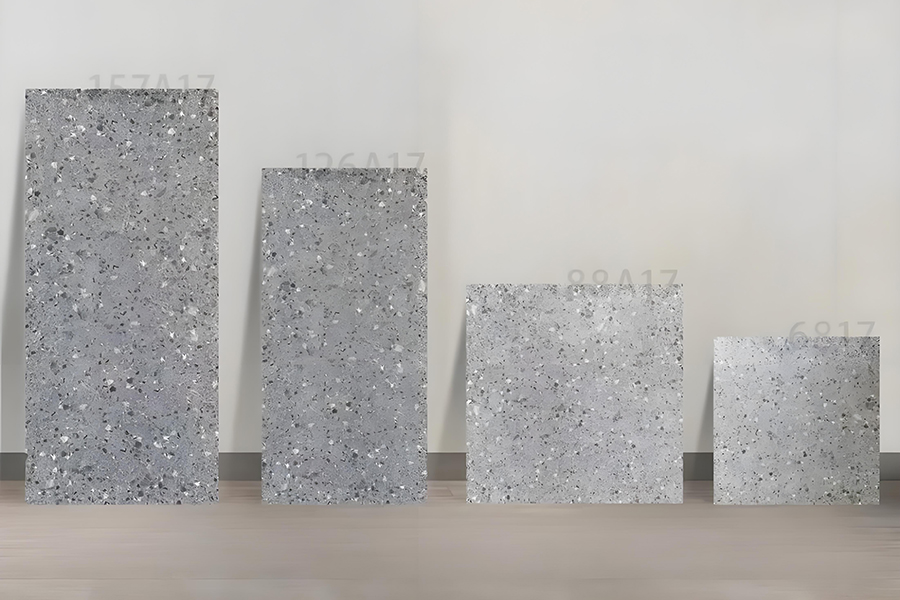

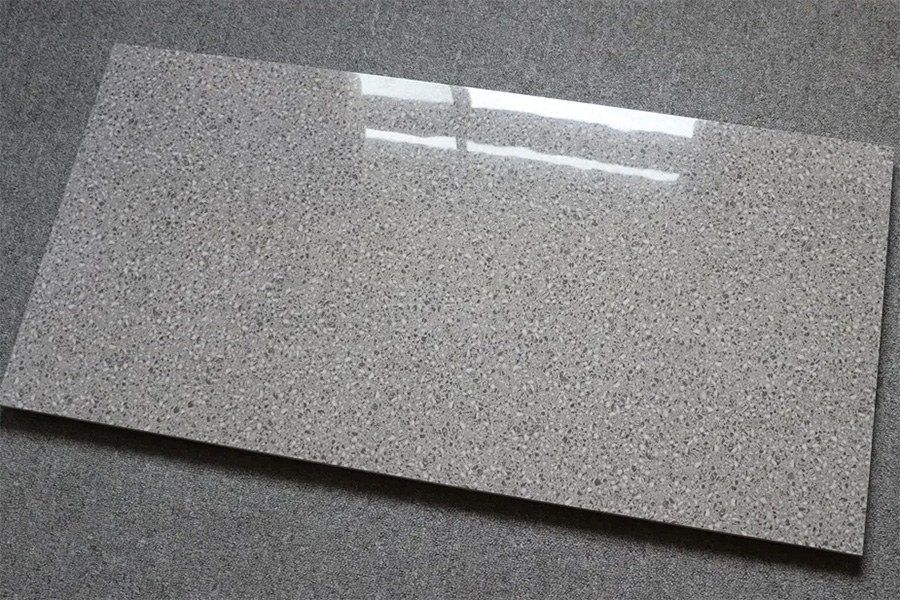

This type of terrazzo tile is primarily designed for indoor flooring, bearing a close resemblance to natural marble, and is available in large dimensions, such as: 800*800mm, 1200*600mm, 1500*750mm, and 1800*900mm. |
This type of cement tile is primarily used for indoor flooring, featuring unique patterns, and comes in small dimensions, such as: 250*250mm, 300*300mm, and 400*400mm. |
